2017-06-25 (Su) Pi0 Laser Tag PiTagErrUs

The rest of the components for the tagger were soldered or crimped to wires. This time, there was a better sense of where things would go and how everything would fit together like the LED ring which was soldered to the LED strip. Shorter wires were used for the trigger and reload button. None of the equipment was mounted to the tagger yet.

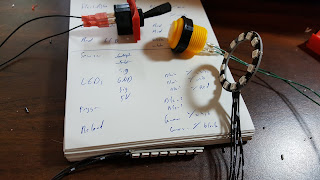

Soldered components
