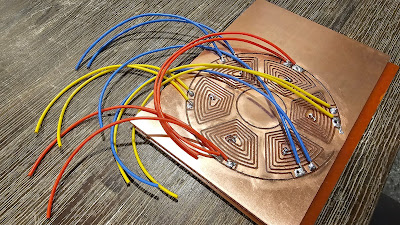

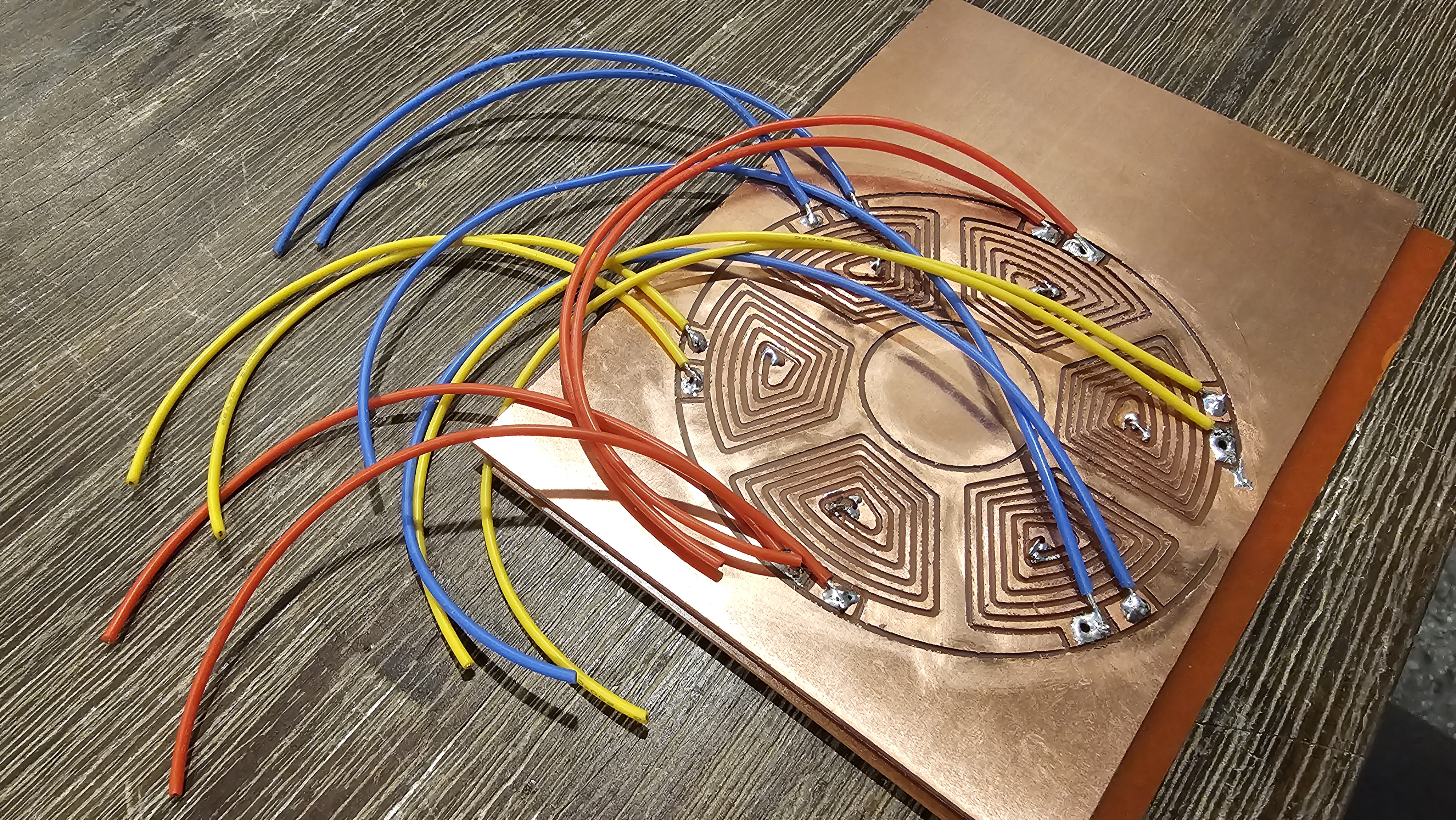

The PCB motor had two unique sides, and one had both sides of the motor coil adjacent, so I soldered a pair of wires to each winding. I made the conductors long enough to reach one side where I would land them. Coils on opposite sides of the hub were wired in the same color to make them easy to coordinate.
Two wires per coil
Everything landed on a 12-position terminal strip, where I added jumpers to connect the coils to a delta-connected (△) motor. I picked the large terminal strip to rearrange later or reverse coils if necessary. The three wires coming off will connect to an electronic speed controller, ESC.
Motor wired in delta △ configuration
